Distributor of Hangzhou FADA gearbox

Hangzhou FADA Gearbox Co., LTD is the leading company in China for marine propulsion system which including FADA marine gearbox, main shaft, propeller as a complete system, decades years of accumulated experience ensuring the strong design ability, significantly reduce the risky or mismatching problems of different components.

High Design Standard, Long Service Life Time

With concept of achieve long using life time, all of FADA gearbox are following high durability design standard, some of models uing high class imported gears, the designed overhual period of FADA gearbox is 10,000 hours, and designed service life time is 10 years running, while some of FADA gearbox just start to carry on overhaul after 20 years continuously operation.

All for Gear, for All Gear

In our 60 years of growing and developing, we devoted ourselves into gear industry, to develop more and more gear related products to meet market demand. based on the marine proplusion products, FADA developed new business fields including hydraulic transmission for construction machinery, wind power gearbox, automotive transmission and transfer case.

Professional Relacement Solutions

Proactively respond to customer issues and provide customised solutions,Think what the customer thinks, rush to the customer’s urgency.

Quality Priority

The quality of our products is our first criterion,If there is a problem, our excellent after-sales service will ensure that you have no worries.

SeaMac-Official Packager of FADA

As part of EMAC Group, SeaMac is focusing on premium marine propulsion and power system. SeaMac is official packager of FADA group, powered by Cummins, Mitsubishi, Volvo and Doosan marine engines, SeaMac provides complete system from diesel engine to marine gearbox, from main shaft to propeller, from main generator set to emergency generator set.

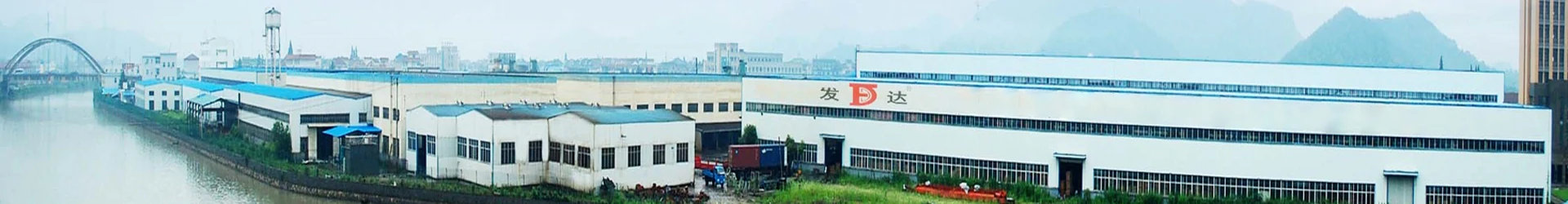

Hangzhou FADA Gearbox Group Co., LTD., founded in 1988. Located in Zhejiang Province, China.Since 2010, FADA has invested heavily in technological transformation, to speed up technological progress and product structure adjustment, the introduction of a number of foreign advanced technology and complete sets of equipment, and constantly improve the level of product design and manufacturing, and broaden the supporting field in an all-round way. In terms of technology, the company currently has Zhejiang provincial enterprise technology center and has 26 authorized patents.
FADA have paying much attention to the development trend of Marine gear box, Marine gear box industry and construction machinery industry, constantly improve product design; At the same time, we continue to develop new products to meet the needs of market development, and contribute to the development of Marine gear box industry.
Read More

EMAC Group Limited was established in Hong Kong in 2010, aims to become a solid one-stop supplier in the power machinery industry. EMAC operating four overseas subsidiaries and owns 10 self-registered trademarks, our products are widely used in which covers energy, maritime, automotive, construction, railways and spare parts. Based on different types of DCEC engines, EMAC integrate other leading power system products into a complete power system.
With years of rich powertrain supply experience, EMAC can quickly understand and respond to customer needs, greatly reducing customer communication costs.
EMAC provides one-stop solutions covers from pre-design to components supply, from installation…
Read More

With the mission of “Better Power, Better World”, EMAC gathering a brilliant well-educated team, all of EMAC’s team members are have English background, from sales to engineers, from marketing team to administration team, our good English foundation ensuing the ability of smooth communication with all customers.
EMAC also gradually builing our global services network, from branch companies to joint ventures, from local sales representatives to local after-sales services partners, we continuously expanding a global network that to provide better communication and services for our customers.
Till 2021, EMAC have branch companies and joint venture in Thailand and Singapore with after-sales service ability in this two countries. And we have sales representatives in Turkey, Spain, France and UK…
Read More
As a 12 years experience profesional one-stop power system provider, EMAC have unique excellent ability with supplying complete power system for all kinds of applications.
From automotive powertrain system to industrial engine power system, from water pump drive package to complete generator set, from marine propulsion system to marine power system, by working closely with global leading companies’ factories in China, EMAC gives high-end solutions with competitive prices.
EMAC is excellent solution provider with a professional and dedicated team, we developed our advanced management system based on our past experience, and EMAC is the innovator of detailed visulization services that have professional video for every single products we sell…
Read More
We cares your voice, from pre-sales communications, to sales communications, from after-sales complaints to customer review feedback, EMAC continuously collecting all kinds of qustions from customers, no matter questions on products, about business terms, marketing or manament related, helping EMAC and customers to know each other better and grow up together.
With the mission of “Better Power, Better World”, and the vision of “Help World Leverage the Power of China”, EMAC looking for business partners in each country, that can working both as branch company or joint venture, by leverage the rich resources here, business network and local service advantages in China, we hope can help all manufacturers in the world to improve their design ability, manufacturing capability, management…
Read More
Medium-Low Duty 1100x600

Medium-Low Duty Marine Gearbox

FADA Medium-Low Duty Gearbox have the ability to reducing speed, ahead and astern, clutching and disclutching and carrying the propeller thrust.The transfer capacity ranges from 0.004kW /rpm to 0.497kW / rpm, with a ratio of 2.5 : 1 – 14.5 : 1. The said products can be used in passenger or cargo boats, fishing boats, tow boats, tugs and high-speed vessels etc., which are perfect selections to make the engine in good condition and to get high efficiency.

FIND MORE

Medium-Heavy Duty 1100x600

Medium-Heavy Duty Marine Gearbox

FADA Medium-Heavy Duty Gearbox have the ability to reducing speed, ahead and astern, clutching and dispatching and carrying the propeller thrust.The transfer capacity ranges from 0.338 kW / rpm to 2.0594 kW/rpm, with a ratio of 1.54 : 1 – 12.5 : 1.

FIND MORE

High Speed Gearbox 1100x600

MG Series Marine Gearbox

As the most common accessories of marine gearbox, Hydraulic Clutch adopts wet multi-plate powder metallurgy friction plate structure, which can adapt to high-speed, high-load, high-frequency clutch working conditions. According to user requirements, two control modes, machine control and electronic control, can be selected. The control system is sensitive and easy to realize remote control or automatic control.

FIND MORE

FDL Series Hydraulic Clutches Image

FDL Series Hydraulic Clutches

FADA FDL-series hydraulic clutches apply structure of wet, multiple P / M friction discs, suitable for clutch condition of high speed, load and frequency. On request, mechanical or electrical control is optional. The control system works sensitively, easily realizing remote or automatic control.

FIND MORE

New Type Marine Gearbox Image

New Type Marine Gearbox

FADA New series Gearbox have the ability to reducing speed, ahead and astern, clutching and disclutching and carrying the propeller thrust.
The said gearbox is somewhat new in construction, reliable in operation, smooth in engaging, light in weight, small in bulk, easy in maintenance and durable in application. The said gearbox is somewhat new in construction, reliable in operation, smooth in engaging, light in weight, small in bulk, easy in maintenance and durable in application. .

FIND MORE

Find FADA Gearbox by Application

We classified our gearbox by the type of application, which also related to the input power and torque range.

Medium-Low Duty

FADA 650 Series Gearbox

FADA 650 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 6.597 – 14.301
Capacity: 0.331 – 0.441 kW / RPM
Net Weight: 200 kg

FADA 600 Series Gearbox

FADA 600 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 2.48 – 14.301
Capacity: 0.280 – 0.497 kW / RPM
Net Weight: 1200 – 2050 kg

FADA 450 Series Gearbox

FADA 450 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 8.0745 – 14.2105
Capacity: 0.220 – 0.331 kW / RPM
Net Weight: 1560 kg

FADA 400 Series Gearbox

FADA 400 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 2.04 – 14.2105
Capacity: 0.220 – 0.331 kW / RPM
Net Weight: 790 – 1450 kg

FADA 300 Series Gearbox

FADA 300 Series Gearbox

Rated Speed: 750 – 2500 RPM
Actual Ratio: 2.04 – 5.44
Capacity: 0.125 – 0.257 kW / RPM
Net Weight: 720 kg

FADA 270 Series Gearbox

FADA 270 Series Gearbox

Rated Speed: 1000 – 2500 RPM
Actual Ratio: 4.05 – 6.82
Capacity: 0.088 – 0.147 kW / RPM
Net Weight: 690 kg

FADA 242 Series Gearbox

FADA 242 Series Gearbox

Rated Speed: 1000 – 2500 RPM
Actual Ratio: 3.04 – 5.88
Capacity: 0.074 – 0.103 kW / RPM
Net Weight: 390 kg

FADA 170 Series Gearbox

FADA 170 Series Gearbox

Rated Speed: 1000 – 2500 RPM
Actual Ratio: 1.97 – 5.88
Capacity: 0.027 – 0.039 kW / RPM
Net Weight: 270 kg

FADA 150 Series Gearbox

FADA 150 Series Gearbox

Rated Speed: 1000 – 2500 RPM
Actual Ratio: 2.030 – 6.680
Capacity: 0.088 – 0.110 kW / RPM
Net Weight: 370 – 425 kg

FADA 142 Series Gearbox

FADA 142 Series Gearbox

Rated Speed: 1500 – 2500 RPM
Actual Ratio: 1.97 – 5.47
Capacity: 0.013 – 0.030 kW / RPM
Net Weight: 140 kg

FADA 135 Series Gearbox

FADA 135 Series Gearbox

Rated Speed: 750 – 2000 RPM
Actual Ratio: 2.03 – 5.81
Capacity: 0.070 – 0.115 kW / RPM
Net Weight: 470 – 472 kg

FADA 125 Series Gearbox

FADA 125 Series Gearbox

Rated Speed: 1500 – 3000 RPM
Actual Ratio: 2.03 – 4.70
Capacity: 0.011 – 0.020 kW / RPM
Net Weight: 120 kg

FADA 120 Series Gearbox

FADA 120 Series Gearbox

Rated Speed: 750 – 2500 RPM
Actual Ratio: 1.12 – 3.73
Capacity: 0.040 – 0.100 kW / RPM
Net Weight: 200 – 360 kg

FADA 40 Series Gearbox

FADA 40 Series Gearbox

Rated Speed: 750 – 2000 RPM
Actual Ratio: 2.07 – 3.60
Capacity: 0.029 kW / RPM
Net Weight: 87 kg

FADA 16 Series Gearbox

FADA 16 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 2.07 – 3.83
Capacity: 0.012 kW / RPM
Net Weight: 87 kg

FADA 06 Series Gearbox

FADA 06 Series Gearbox

Rated Speed: 1000 – 2100 RPM
Actual Ratio: 2.52 – 3.50
Capacity: 0.0044 kW / RPM
Net Weight: 62 kg

Medium-Heavy Duty

FADA 2800 Series Gearbox

FADA 2800 Series Gearbox

Rated Speed: 500 – 1400 RPM
Actual Ratio: 3.6538 – 12.4211
Capacity: 1.4269 – 2.0594 kW / RPM
Net Weight: 5000 – 8650 kg

FADA 2200 Series Gearbox

FADA 2200 Series Gearbox

Rated Speed: 600 – 1500 RPM
Actual Ratio: 1.4571 – 13.6875
Capacity: 1.220 – 1.618 kW / RPM
Net Weight: 3360 – 6260 kg

FADA 1700 Series Gearbox

FADA 1700 Series Gearbox

Rated Speed: 600 – 1600 RPM
Actual Ratio: 3.000 – 5.941
Capacity: 1.03 – 1.25 kW / RPM
Net Weight: 2750 kg

FADA 1500 Series Gearbox

FADA 1500 Series Gearbox

Rated Speed: 600 – 1600 RPM
Actual Ratio: 3.000 – 16.960
Capacity: 0.775 – 1.250 kW / RPM
Net Weight: 2900 – 5400 kg

FADA 1380 Series Gearbox

FADA 1380 Series Gearbox

Rated Speed: 1000 – 1800 RPM
Actual Ratio: 7.5243 – 22.2588
Capacity: 0.410 – 1.030 kW / RPM
Net Weight: 1800 – 4650 kg

FADA 1260 Series Gearbox

FADA 1260 Series Gearbox

Rated Speed: 600 – 1600 RPM
Actual Ratio: 1.5278 – 4.4737
Capacity: 0.758 – 0.956 kW / RPM
Net Weight: 1800 kg

FADA 1200 Series Gearbox

FADA 1200 Series Gearbox

Rated Speed: 600 – 1800 RPM
Actual Ratio: 2.56 – 9.015
Capacity: 0.735 – 0.930 kW / RPM
Net Weight: 1850 – 3050 kg

FADA 1000 Series Gearbox

FADA 1000 Series Gearbox

Rated Speed: 1500 – 1800 RPM
Actual Ratio: 10.119 – 17.561
Capacity: 0.382 – 0.794 kW / RPM
Net Weight: 3250 kg

FADA 900 Series Gearbox

FADA 900 Series Gearbox

Rated Speed: 750 – 1800 RPM
Actual Ratio: 1.963 – 16.430
Capacity: 0.338 – 0.800 kW / RPM
Net Weight: 1600 – 3000 kg

MG Series Gearbox

FADA MGS Series Gearbox

FADA MGS Series Gearbox

Rated Speed: 400 – 1800 RPM
Actual Ratio: 1.9714 – 3.9524
Capacity: 0.919 – 6.983 kW / RPM
Net Weight: 2250 – 21500 kg

FADA MG Series Gearbox

FADA MG Series Gearbox

Rated Speed: 300 – 1800 RPM
Actual Ratio: 1.9347 – 6.1161
Capacity: 0.490 – 22.746 kW / RPM
Net Weight: 2900 – 42000 kg

FDL Series Gearbox

New Type Gearbox

FADA JD700 Gearbox

FADA JD700 Gearbox

Gearbox Model: JD700 Marine Gearbox
Input Speed: 1000 – 2100 RPM
Actual Ratio: 4.18 – 6.05
Trans. Capacity: 0.500 – 0.550 kW / RPM

FADA D450 Gearbox

FADA D450 Gearbox

Gearbox Model: D450 Marine Gearbox
Input Speed: 1000 – 2100 RPM
Actual Ratio: 4.000 – 6.000
Trans. Capacity: 0.279 – 0.331 kW / RPM

FADA 450 Gearbox

FADA 450 Gearbox

Gearbox Model: 450 Marine Gearbox
Input Speed: 1000 – 2100 RPM
Actual Ratio: 2.04 – 4.06
Trans. Capacity: 0.280 – 0.331 kW / RPM

FADA D345/1 Gearbox

FADA D345/1 Gearbox

Gearbox Model: D345 / 1 Marine Gearbox
Input Speed: 750 – 2500 RPM
Actual Ratio: 5.52 – 7.06
Trans. Capacity: 0.147 – 0.200 kW / RPM

FADA D345 Gearbox

FADA D345 Gearbox

Gearbox Model: D345 Marine Gearbox
Input Speed: 750 – 2500 RPM
Actual Ratio: 4.050 – 5.471
Trans. Capacity: 0.184 – 0.257 kW / RPM

FADA 345 Gearbox

FADA 345 Gearbox

Gearbox Model: 345 Marine Gearbox
Input Speed: 750 – 2500 RPM
Actual Ratio: 3.00 – 5.00
Trans. Capacity: 0.147 – 0.243 kW / RPM

FADA D145 Gearbox

FADA D145 Gearbox

Gearbox Model: D145 Marine Gearbox
Input Speed: 750 – 2000 RPM
Actual Ratio: 3.04 – 5.81
Trans. Capacity: 0.070 – 0.100 kW / RPM

FADA D50 Gearbox

FADA D50 Gearbox

Gearbox Model: D50 Marine Gearbox
Input Speed: 1000 – 2500 RPM
Actual Ratio: 1.97 – 5.88
Trans. Capacity: 0.027 – 0.039 kW / RPM

FADA 50 Gearbox

FADA 50 Gearbox

Gearbox Model: 50 Marine Gearbox
Input Speed: 1000 – 2500 RPM
Actual Ratio: 2.0333 – 4.5000
Trans. Capacity: 0.025 – 0.039 kW / RPM

FADA X40 Gearbox

FADA X40 Gearbox

Gearbox Model: X40 Marine Gearbox
Input Speed: 750 – 2000 RPM
Actual Ratio: 2.07 – 3.65
Trans. Capacity: 0.023 – 0.029 kW / RPM
