FADA 400 Series Gearbox
The input speed range of the FADA 400 Series marine gearbox is 1000-2100 RPM. The reduction ratio range is 2.04-14.2105 and transfer capacity range is 0.220-0.331 kW/RPM.
FADA 400 Series marine gearbox is composed of Input coupling, control system, output coupling, oil cooler, oil filter, oil pressure gauge and other important components. FADA 400 Series marine gearbox can provide mechanical control system. To meet the different requirement of coupling with different diesel engine brands and models, FADA 400 Series marine gearbox are offered in different sizes of housing SEA 0 1 is available.
All of our FADA gearboxes are approved by CCS, and we are able to provide BV LR ABS DNV&GL RS and other classification societies based on customer requirement with extra cost.
As an official marine power pack packager of FADA, SeaMac provide complete propulsion system and power system for all kinds of ships all around the world. Mainly including marine engine, gearbox, shaft, propeller, marine genset, electric control lever system and other marine accessories. We also provide full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages Of FADA 400 Marine Gearbox
- Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
- Small in size, clear in weight. The ease of use and maintenance is fully considered in the design.
- With excellent machine performance, good design effectively reduce the noise, reduce the vibration.
- European standard manufacturing, making the structure strong and durable, smooth work.
- Excellent deceleration effect and bearing propeller thrust.
- Professional gearbox specialists and after-sales service, spare parts directly available from stock.
General Specifications of FADA Gearbox 400 Series
| Rated Speed: | 1000 – 2100 RPM |
| Actual Ratio: | 2.04 – 14.2105 |
| Capacity: | 0.220 – 0.331 kW / RPM |
| Net Weight: | 790 – 1450 kg |
FADA 400 Series Marine Gearbox
This is a list of all of FADA 400 series marine gearbox.
FADA JT400/1 Marine Gearbox
Gearbox Model: JT400/1 Marine Gearbox
Input Speed Range: 1000 – 2100 RPM
Reduction Ratio: 8.0745 – 14.2105
Trans. Capacity: 0.220 – 0.331 kW / RPM
FADA JT400A Marine Gearbox
Gearbox Model: JT400A Marine Gearbox
Input Speed Range: 1000 – 2100 RPM
Reduction Ratio: 6.108 – 9.474
Trans. Capacity: 0.245 – 0.331 kW / RPM
FADA JD400A Marine Gearbox
Gearbox Model: JD400A Marine Gearbox
Input Speed Range: 1000 – 1800 RPM
Reduction Ratio: 4.000- 6.000
Trans. Capacity: 0.279- 0.331 kW / RPM

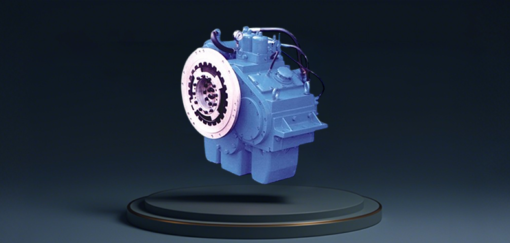

FADA J400A Marine Gearbox
Gearbox Model: J400A Marine Gearbox
Input Speed Range: 1000 – 1800 RPM
Reduction Ratio: 2.04 – 4.06
Trans. Capacity: 0.280 – 0.331 kW / RPM
