FADA 135 Series Gearbox
The input speed range of the FADA 135 Series marine gearbox is 750 – 2000 RPM. The reduction ratio range is 2.03 – 5.81 and transfer capacity range is 0.070 – 0.115 kW/RPM.FADA 135 Series marine gearbox is composed of Input coupling, control system, output coupling, oil cooler, oil filter, oil pressure gauge and other important components. FADA 135 Series marine gearbox can provide mechanical control system. To meet the different requirement of coupling with different diesel engine brands and models, FADA 135 Series marine gearbox are offered in different sizes of housing 6135Ca SAE 1 is available.All of our FADA gearboxes are approved by CCS, and we are able to provide BV LR ABS DNV&GL RS and other classification societies based on customer requirement with extra cost.As an official marine power pack packager of FADA, SeaMac provide complete propulsion system and power system for all kinds of ships all around the world. Mainly including marine engine, gearbox, shaft, propeller, marine genset, electric control lever system and other marine accessories. We also provide full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages Of FADA 135 Marine Gearbox
- Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
- Small in size, clear in weight. The ease of use and maintenance is fully considered in the design.
- With excellent machine performance, good design effectively reduce the noise, reduce the vibration.
- European standard manufacturing, making the structure strong and durable, smooth work.
- Excellent deceleration effect and bearing propeller thrust.
- Professional gearbox specialists and after-sales service, spare parts directly available from stock.
General Specifications of FADA Gearbox 135 Series
| Rated Speed: | 750 – 2000 RPM |
| Actual Ratio: | 2.03 – 5.81 |
| Capacity: | 0.070 – 0.115 kW / RPM |
| Net Weight: | 470 – 472 kg |
FADA 135 Series Marine Gearbox
This is a list of all of FADA 135 series marine gearbox.
FADA J135A Marine Gearbox
Gearbox Model: J135A Marine Gearbox
Input Speed Range: 750 – 2000 RPM
Reduction Ratio: 2.03 – 5.81
Trans. Capacity: 0.081 – 0.115 kW / RPM
FADA J135 Marine Gearbox
Gearbox Model: J135 Marine Gearbox
Input Speed Range: 750 – 2000 RPM
Reduction Ratio: 2.03 – 5.81
Trans. Capacity: 0.081 – 0.115 kW / RPM

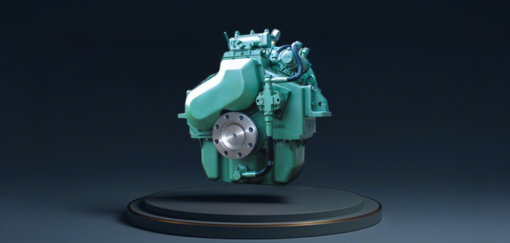

FADA FD135A Marine Gearbox
Gearbox Model: FD135A Marine Gearbox
Input Speed Range: 750 – 2000 RPM
Reduction Ratio: 2.03 – 5.81
Trans. Capacity: 0.070 – 0.100 kW / RPM
FADA FD135 Marine Gearbox
Gearbox Model: FD135 Marine Gearbox
Input Speed Range: 750 – 2000 RPM
Reduction Ratio: 2.03 – 5.81
Trans. Capacity: 0.070 – 0.100 kW / RPM
