FADA 1200 Series Gearbox
The input speed range of the FADA 1200 Series marine gearbox is 600 – 1800 RPM. The reduction ratio range is 2.56 – 9.015 and transfer capacity range is 0.735 – 0.930 kW/RPM.FADA 1200 Series marine gearbox is composed of Input coupling, control system, output coupling, oil cooler, oil filter, oil pressure gauge and other important components. FADA 1200 Series marine gearbox can provide mechanical control system. To meet the different requirement of coupling with different diesel engine brands and models, FADA 1200 Series marine gearbox are offered in different sizes of housing SAE 0 00 is available.All of our FADA gearboxes are approved by CCS, and we are able to provide BV LR ABS DNV&GL RS and other classification societies based on customer requirement with extra cost.As an official marine power pack packager of FADA, SeaMac provide complete propulsion system and power system for all kinds of ships all around the world. Mainly including marine engine, gearbox, shaft, propeller, marine genset, electric control lever system and other marine accessories. We also provide full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages Of FADA 1200 Marine Gearbox
- Gearbox novel structure, so that its use becomes very reliable. The excellent design makes the gearbox and engine arrangement more soft and smooth.
- Small in size, clear in weight. The ease of use and maintenance is fully considered in the design.
- With excellent machine performance, good design effectively reduce the noise, reduce the vibration.
- European standard manufacturing, making the structure strong and durable, smooth work.
- Excellent deceleration effect and bearing propeller thrust.
- Professional gearbox specialists and after-sales service, spare parts directly available from stock.
General Specifications of FADA Gearbox 1200 Series
| Rated Speed: | 600 – 1800 RPM |
| Actual Ratio: | 2.56 – 9.015 |
| Capacity: | 0.735 – 0.930 kW / RPM |
| Net Weight: | 1850 – 3050 kg |
FADA 1200 Series Marine Gearbox
This is a list of all of FADA 1200 series marine gearbox.
FADA JT1200 Marine Gearbox
Gearbox Model: JT1200 Marine Gearbox
Input Speed Range: 1000 – 1800 RPM
Reduction Ratio: 6.124 – 9.015
Trans. Capacity: 0.846 – 1.014 kW / RPM
FADA JD1200 Marine Gearbox
Gearbox Model: JD1200 Marine Gearbox
Input Speed Range: 600 – 1600 RPM
Reduction Ratio: 3.9524 – 5.9412
Trans. Capacity: 0.735 – 1.014 kW / RPM

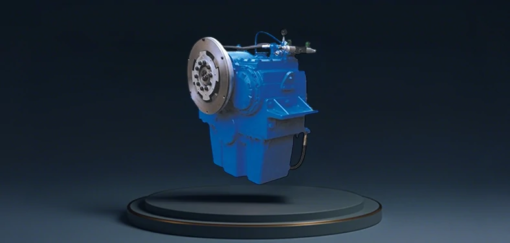

FADA J1200A Marine Gearbox
Gearbox Model: J1200A Marine Gearbox
Input Speed Range: 750 – 1500 RPM
Reduction Ratio: 2.56 – 4.45
Trans. Capacity: 0.930 kW / RPM
